Near-field (spherical)

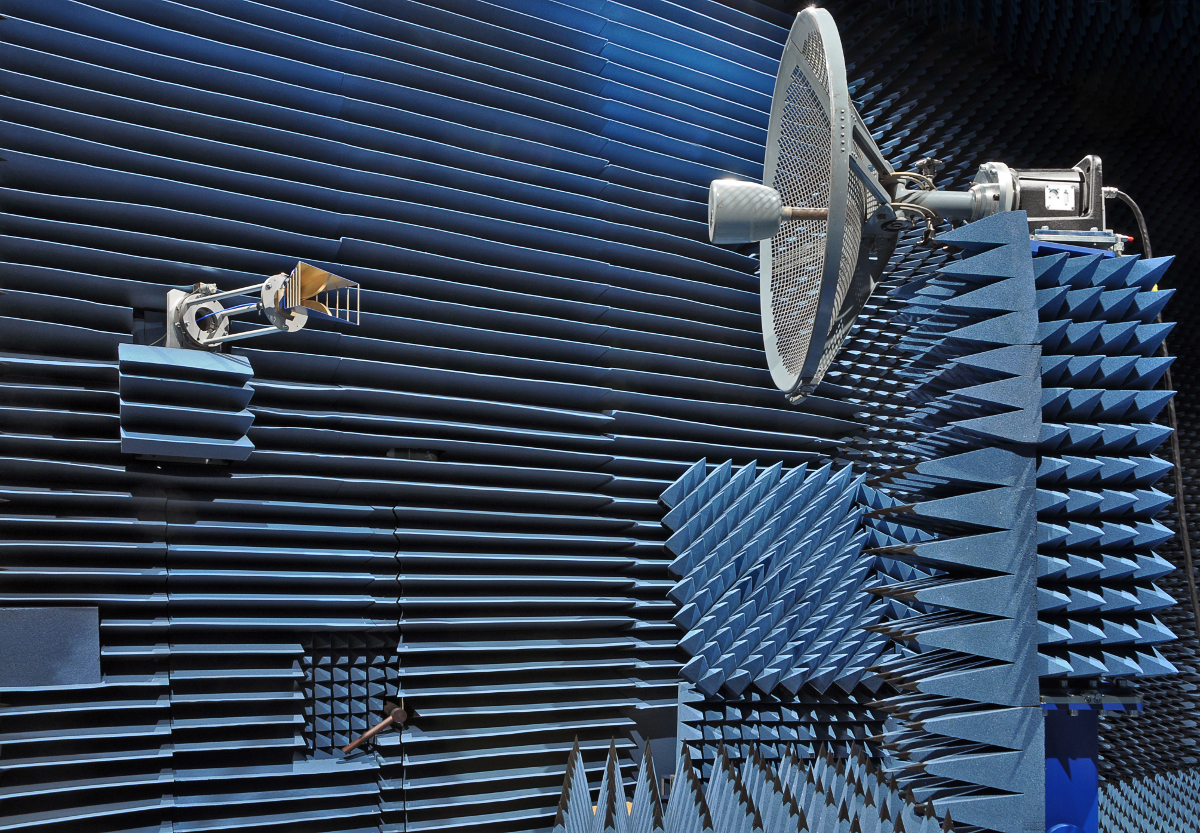

Hertz Measurement Chamber


Specifications

Frequency Range2 - 75 GHz
AUT PositionerAxisRoll-over-Azimuth plus elevation squint and pick-up
 Accuracy< +/- 0.03°
 Max. AUT mass100 kg
  Optional dielectric tower for low-gain antennas up to 12 kg
RF InstrumentationRohde & Schwarz ZVA24 VNA
Shielded Anechoic Room5 m x 5 m x 9 m
Control and Post-processing SoftwareActiveCell 4 by Orbit/FR Europe
Additional Test EquipmentStandard gain antennas for 0,8 – 12 GHz
