RCS

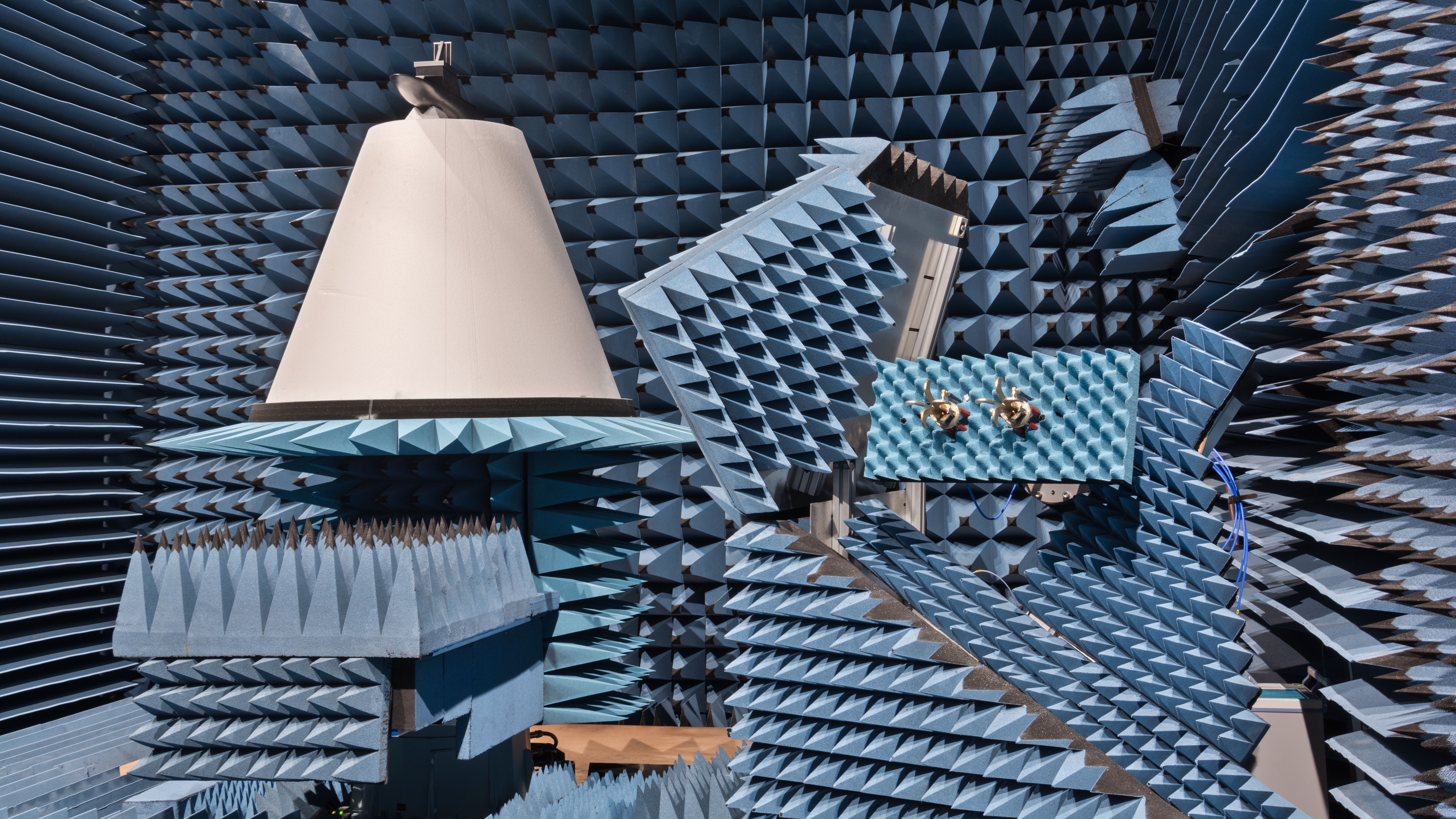

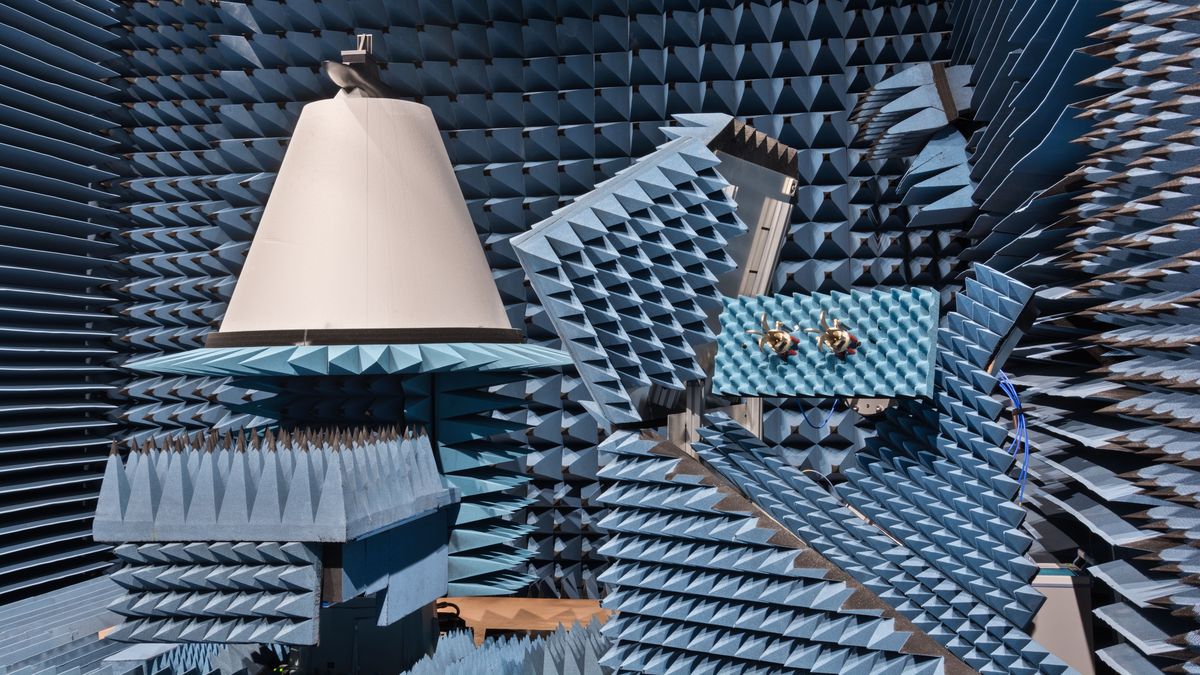

Hertz Measurement Chamber
Specification
Frequency range | 2 - 24 GH (Extended frequency range on request) | |
---|---|---|
Quiet Zone | Cylindrical | |
Diameter, Length | 1,2 m, 1,2 m | |
Positioning system | Axis | Azimuth |
Accuracy | < +/- 0.03° | |
Target Support | Foam column | |
Supporting area | 500 mm | |
RCS < -35 dBsm (2 GHz) | ||
Max. Target mass | 80 kg | |
Instrumentation and antennas | Rohde & Schwarz ZVA24 VNA as SFCW-Radar | |
2x Satimo QH2000 Open Boundary Quad Ridge Horns | ||
Quasimonostatic configuration for full-polarimetric (bist. angle adjustable between 1.5° .. 5°) | ||
Monostatic configuration for HH-/VV-measurements | ||
Dynamic range | 80 dB (10 GHz) | |
Shielded anechoic room | 5 m x 5 m x 9 m | |
Control and Post-processing Software | ActiveCell 4 von Orbit/FR Europe | |
In-House Postprocessing-Software |
